How to connect X100 Pro2 and EEPROM Adapter?

As we know, one of the main functions of XTOOL X100 Pro2 is that it can work with EEPROM Adapter to read pin code, initialize data and program EEPROM. But do you know how to use? Which vehicles are supported? Don’t worry! Read this post and find answers.

X100 PRO2 key programmer full configuration comes with both EEPROM and EEPROM Adapter and other accessories.

How to connect X100 Pro2, EEPROM Adapter and EEPROM?

1.Connect the chip you desire to EEPROM chip via the professional cable

2.Plug EEPROM chip into EEPROM Adapter

3.Connect EEPROM Adapter to X100 Pro2 via the main cable

How to do EEPROM function?

When the connection between XTOOL X100 Pro2 key programmer and EEPROM Adapter is correct, the indicator of EEPROM Adapter will be on.

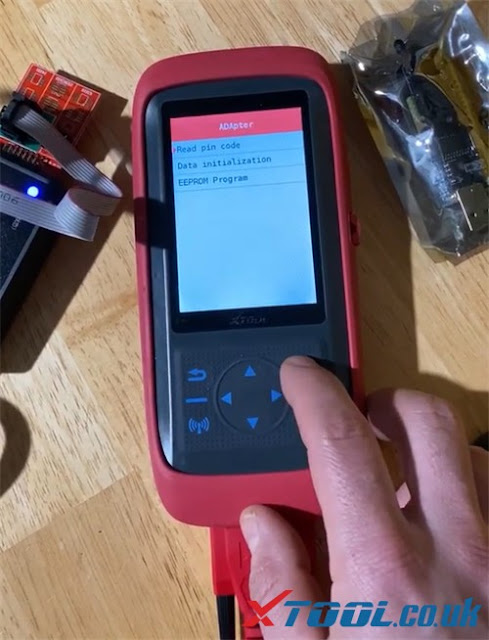

Enter “EEPROM” function, it will show the main three functions:

l Read pin code

l Data initialization

l EEPROM Program

1.Read pin code

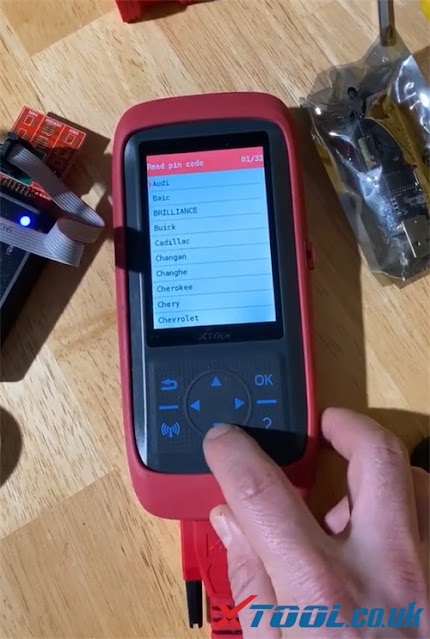

Select the corresponding car model-> Chip type

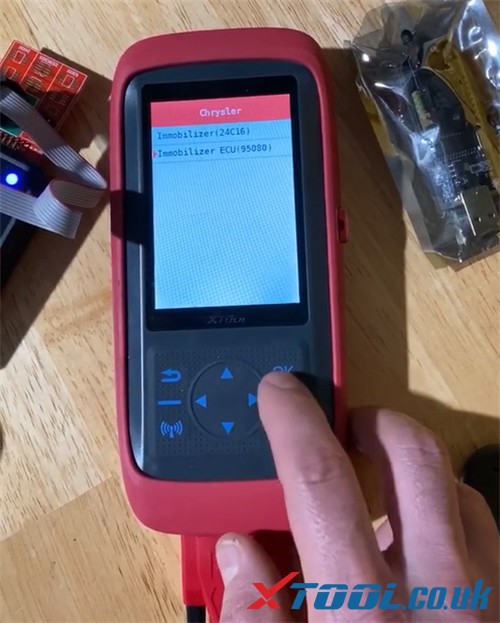

e.g Chrysler-> Immobilizer ECU (95080)

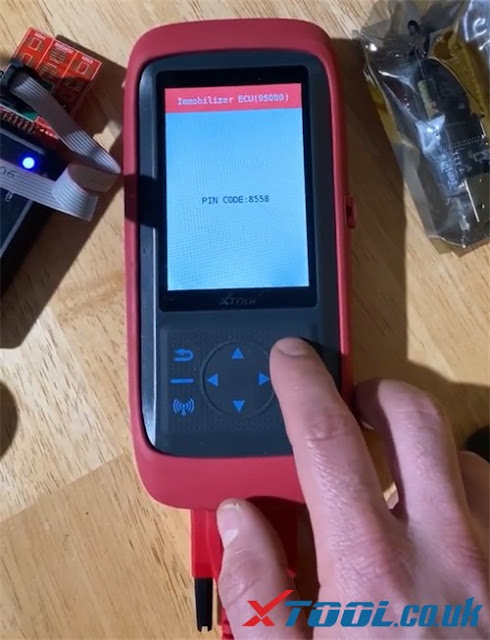

Then read out the pin code successfully



2.EEPROM Program

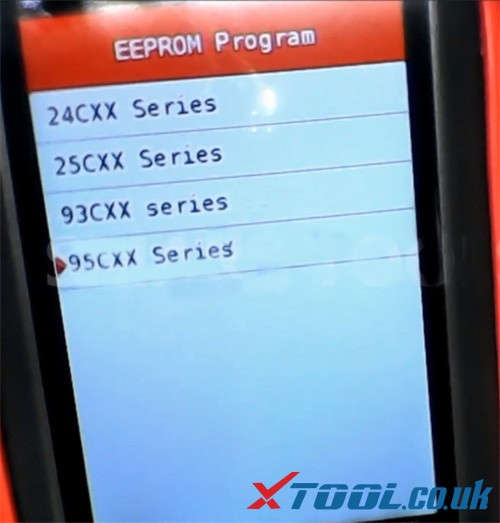

Select the related EEPROM chip type

Then you can read EEPROM data, write EEPROM data and EEPROM data recovery depends on your need

e.g 95CXX Series-> 95040-> Read EEPROM data-> Input the file name (Create File or Create Folder)-> Save file



Which car models can work with XTOOL X100 Pro2 and EEPROM Adapter?

1.Read pin code

Audi, Baic, BRILLIANCE, Buick, Cadillac, Changan, Changhe, Cherokee, Chery, Chevrolet, Chrysler, Citroen, Dflz, Dfpv, Geely, Greatwall, Hafei, Hnmazda, Hawtai, Huapu, Lotus, MG, Mitsubishi, Jiangling, Liebao, Peugeot, Porsche, Roewe, Skoda, VW

Please press “Ctrl+ F” button at the same time to search for the vehicle you desire.

Audi

Engine ECU (95040)

Engine ECU (95080)

Immobilizer (C46M6)

Dash board (C66M6)

Dash board (93C86)

Baic

E150

BCM (24C16)

Engine ECU (95080)

E130

BCM (24C16)

Engine ECU (95080)

BRILLIANCE

Delphi ECU (93C66)

Buick

Sail

Engine ECU (95080)

Excelle XT

BCM (24C16)

New GL8

BCM (24C16)

09-Lacrosse

BCM (24C16)

09-Regal

BCM (24C16)

Encore

BCM (24C16)

BCM (24C32)

Cadillac

SLS

BCM (93C86)

SRX

BCM (24C16)

Changan

CM8

Engine ECU (95080)

CX20

BCM ECU (93C46)

CX30

BCM ECU (93C46)

Yuexiang (BCM)

BCM ECU (93C46)

Zhixiang (BCM)

BCM ECU (93C46)

Benben

Immobilizer (95040)

Honor

Engine (95080)

Changhe

Immobilizer (93C46)

Cherokee

4.7 immobilizer (24c02)

2009 wrangler immobilizer ECU (24c16)

Chery

STEC immobilizer

Engine ECU (95080)

DIAS immobilizer

Immobilizer ECU (24c02)

Chery immobilizer

Immobilizer ECU (24c02)

Delphi

Immobilizer ECU (93c46)

Chevrolet

Aveo

BCM ECU (95160)

Cruze

-2014

BCM（24c16）

2014-

BCM (24C32)

BCM (93C56)

Trax

BCM (24C16)

Chrysler

Immobilizer (24c16)

Immobilizer ECM (95080)

Citroen

Berlingo

BSI 95160

Xsara

BSI 95040

C2

BSI 95128

BSI 95160

C3

BSI 95160

C5

BSI 95160

Picasso

BSI 95160

Triumph

BSI 95128

Elysee

Immobilizer 93c46

C-QUATRE 2014

BSI 95128

Fukang

Immobilizer 93c46

Dflz

Joyear

Immobilizer 24c02

Other

Immobilizer 24c02

Dfpv

S30

Immobilizer 93c46

Immobilizer 24c02

H30

Immobilizer 24c02

Geely

Emgrand

Immobilizer 93c56

EC820 Mitsubishi Immobilizer 24c02

Quanqiuying

STEC immobilizer ECU (24C02) 4 digits

Yuanjing

Engine ECU 95080

Maple

STEC immobilizer ECU (24C02) 4 digits

Greatwall

Delphi ECU 93c66

STEC immobilizer ECU (24C02) 4 digits

M2

Immobilizer ECU1 24C02

Immobilizer ECU2 24C02

Wingle disel

Engine ECU 95320

EDC16C39-6 H1 95320

Hafei

Immobilizer 24c02

Engine ECU 95080

Hnmazda

323 (8C chip)

Engine ECU 93C56

Immobilizer (24c02) type 1

Immobilizer (24c02) type 2

Engine ECU 95080

STEC immobilizer ECU (24C02) 4 digits

Hawtai

BAOLIGE

Immobilizer 24c02

SANTAFE

Immobilizer 24c02

Disel engine ECU 2007 (95040)

Huapu

Immobilizer 24c02

Lotus

Immobilizer 93c56

Immobilizer (24c02) 8 digits

MG

MG3

Engine ECU 95080

BCM 24C16

BCM 95160

MG5

BCM ECU 95160

MG6

Engine ECU 95080

Mitsubishi

Wing god

Immobilizer 24c16

Jiangling

X6

Engine ECU 95320

X8

Engine ECU 95320

Liebao

Immobilizer 24c02

Engine ECU 95080

Peugeot

206

BSI 95160

207

BSI 95160

307

BSI 95160

BSI 95128

407

BSI 93c66

BSI 95040

408

BSI 95128

607

BSI 93c66

Porsche

Engine ECU 95128

Engine ECU 95160

Roewe

350

2013 BCM ECU 95160

2014 BCM ECU 24C16

550

Engine ECU 95080

W5

2013 BCM ECU 95160

2014 BCM ECU 24C16

Skoda

Engine 95040

VW

Bora

Immobilizer 93c56

Immobilizer (24c02) 8 digits

Beetle

Engine 95040

Golf

Immobilizer 93LC56B

Jetta

Dash board 2007-2009

Engine 2007-2009

Lavida

Engine 95040

Passat

Engine 95040

Polo

Engine 95040

Engine 95080

Sagitar

Engine 93c86

Engine 95040

Santana

Immobilizer 93LC56B

Immobilizer 24c04

Sharan

Engine 95040

Toureg

Engine 95040

Engine 95160

Engine 95128

ZZnissan

Engine ECU 95320

Immobilizer ECU 24c02

Zotye

Immobilizer 24c02

2.Data initialization

Perodua

Immobilizer initialization

Myvi A

Data initialization 24c02

Avanza Dot

Data initialization 93c66

Myvi DH

Data initialization 93c66

Myvi GDH

Data initialization 93c66

Toyota

Immobilizer initialization

Vios immobilizer (with G）

Camry immobilizer (with G)

RAV4 immobilizer (with G)

Other immobilizer (with G)

4C chip

Smart key system

Crown (12 generation)

Smart key 89990-30061 (s2943)

Highlander

Smart key 89990-0E020 (93c86)

Immobilizer 89784-0E020 (93C46)

Lexus

ES350

Smart key 89990-33330 (93c86)

Immobilizer 89784-33030 (93C56)

RX270

Smart key 89990-48240 (93c86)

Immobilizer 89784-48040 (93C46)

IS250

Smart key 89990-53130 (93c86)

Immobilizer 89784-53030 (93C46)

Previa

Smart key 89990-28131 (93c86)

Immobilizer 89784-28011 (93C46)

Reiz

2013

Steering column lock ECU 5290 (93C46)

Smart key 89990 0P020 (93C86)

Camry

2009

Smart key 89990-06021 (93c86)

Immobilizer 89784-06020 (93C46)

2014

Steering column lock ECU 5290 (93C46)

Smart key 89990-06140 (93c86)

RAV 4

-2012

Smart key 89990-42070 (93c86)

Immobilizer 89784-0R020 (93C46)

2014

Steering column lock ECU 5290 (93C46)

Smart key 89990 0R030 (93C86)

3.EEPROM Program

24cxx Series

24c01

24c02

24c04

24c08

24c16

24c32

24c64

25cxx Series

25010

25020

25040

25080

25160

25320

25640

25128

25256

93cxx Series

93c46

93c56

93c57

93c66

93LC66A

93c76

93c86

95cxx Series

95010

95020

95040

95080

95160

95320

95640

95128

95256
